Discover the HUADA J30JA-31ZKW Micro Connector: High Density, Miniaturization, and Reliability

The HUADA J30JA-31ZKW micro connector packs powerful performance into a small form factor. With twelve specifications ranging from 5 to 144 cores, it’s a versatile choice for various applications. The twisted wire twist needles ensure secure connections, while the 1.27mm contact spacing and 1.1mm row spacing enhance reliability. Whether you’re designing aerospace systems or industrial machinery, the J30JA-31ZKW delivers high performance and meets GJB 2446 standards, equivalent to the US military standard MIL-DT-83513.
Designed for demanding environments, the J30JA-31ZKW boasts a robust build. It can withstand up to 500 mating cycles and operates in temperatures ranging from -55°C to +125°C. With low contact resistance (10 mΩ) and high insulation resistance (5000 mΩ), it ensures reliable signal transmission. Whether you’re in defense, telecommunications, or robotics, the J30JA-31ZKW is your go-to connector for miniaturized, high-density solutions.

Key Features of the HUADA J30JA-31ZKW Connector

Temperature Range and Humidity Resistance: The J30JA-31ZKW thrives in a wide temperature spectrum, from a chilly -55°C to a scorching +125°C. It’s also unfazed by humidity, handling up to 95% relative humidity at 40°C. So whether it’s a frosty tundra or a steamy factory floor, this connector won’t break a sweat.
Vibration and Shock Endurance: When the ground shakes (or the machinery does), the J30JA-31ZKW remains steadfast. It laughs in the face of vibrations from 10 Hz to 2000 Hz, with an acceleration of 196 m/s². And if a sudden jolt comes its way, it can handle shocks up to 735 m/s². Your critical systems stay connected, no matter the turbulence.
With a maximum current rating of 3 A, it’s ready for action. Plus, its contact resistance stays below 10 mΩ, ensuring efficient signal transmission. Whether it’s data or power, this connector keeps things flowing smoothly.
Insulation and Dielectric Strength: Insulation matters. The J30JA-31ZKW boasts high insulation resistance—over 5000 MΩ. And when voltage pushes the limits, it stands tall, handling up to 800 V. Safety and reliability? Check and check.
Endurance and Longevity: This connector isn’t a sprinter; it’s a marathon runner. With a lifespan of at least 500 mating cycles, it’s built for the long haul. So whether you’re in aerospace, telecommunications, or any tech-savvy domain, the J30JA-31ZKW is your trusty companion.

Technical Features Table:

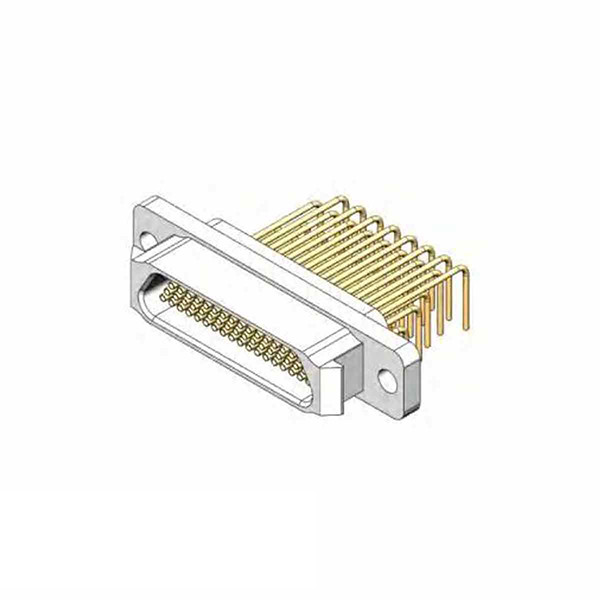

High-Density Micro Rectangular Electrical Connector: HUADA J30JA-31ZKW Images
