Discover the Versatile IRF3205 MOSFET Transistor

Revolutionize Your Electronic Circuits with IRF3205 MOSFET Transistor

IRF3205 is a powerful and reliable N-channel MOSFET transistor that is commonly used in electronic circuits where high power switching is required. This MOSFET has a maximum voltage rating of 55 volts and can handle a continuous current of up to 110 amps. Its low on-state resistance of only 8 milliohms means that it dissipates very little power even when used in high current applications. The IRF3205 is a great choice for power supplies, motor control, and other applications requiring high current and high voltage switching.

Technical features:

• Product Category: MOSFET
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-220-3
• Transistor Polarity: N-Channel
• Number of Channels: 1 Channel
• Vds - Drain-Source Breakdown Voltage: 55 V
• Id - Continuous Drain Current: 110 A
• Rds On - Drain-Source Resistance: 8 mOhms
• Vgs - Gate-Source Voltage: - 20 V, + 20 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 200 W
• Channel Mode: Enhancement
• Brand: Infineon / IR
• Configuration: Single
• Fall Time: 65 ns
• Height: 15.65 mm
• Length: 10 mm
• Product Type: MOSFET
• Rise Time: 101 ns
• Subcategory: MOSFETs
• Transistor Type: 1 N-Channel
• Typical Turn-Off Delay Time: 50 ns
• Typical Turn-On Delay Time: 14 ns
• Width: 4.4 mm Unit
• Weight: 0.068784 oz

Multifunctional Transistor N Channel MOSFET

55V Transistor N Channel MOSFET

IRF3205

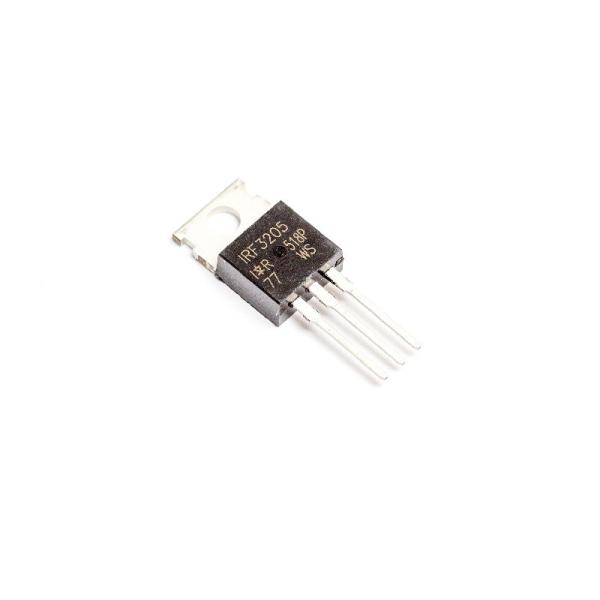

Multifunctional Transistor N Channel MOSFET , 55V 110A IRF3205 Electronic Transistor Images
